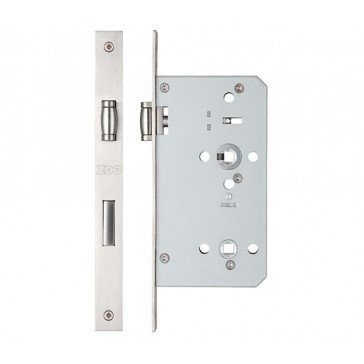

ZOO ZDL7260LLSS (LIFT TO LOCK) BATHROOM LOCK CASE ONLY – SQUARE FOREND

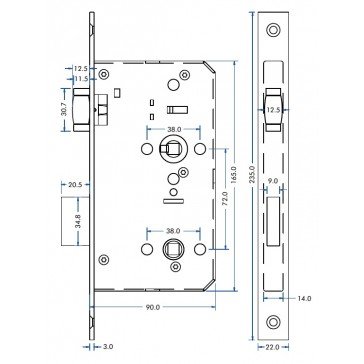

Underneath the lever is the release & indicator, this operates in the same manner as bathroom type coin releases. Internal / Inside access: The internal side of the lever set will be configured such that, the latch bolt is blanked off with a engraved covered escutcheon. The deadbolt features the second lever handle, and by throwing the handle up “extends the deadbolt” & locks the door. By turning the handle down the deadbolt is withdrawn, further downward action of the lever withdraws the roller latch bolt, allowing exit. Lock case available in 60mm back-set only. Adjustable roller latch bolt, case size (60mm backset) – 90mm x 165mm, face plate – 235mm x 22mm x 3mm, stainless steel latch bolt & dead bolt, includes grip tight follower spring, includes anti-rattle strike and dust box, all factory QC tested.
