Gatemaster CDD/CDS Concealed Drop Bolt

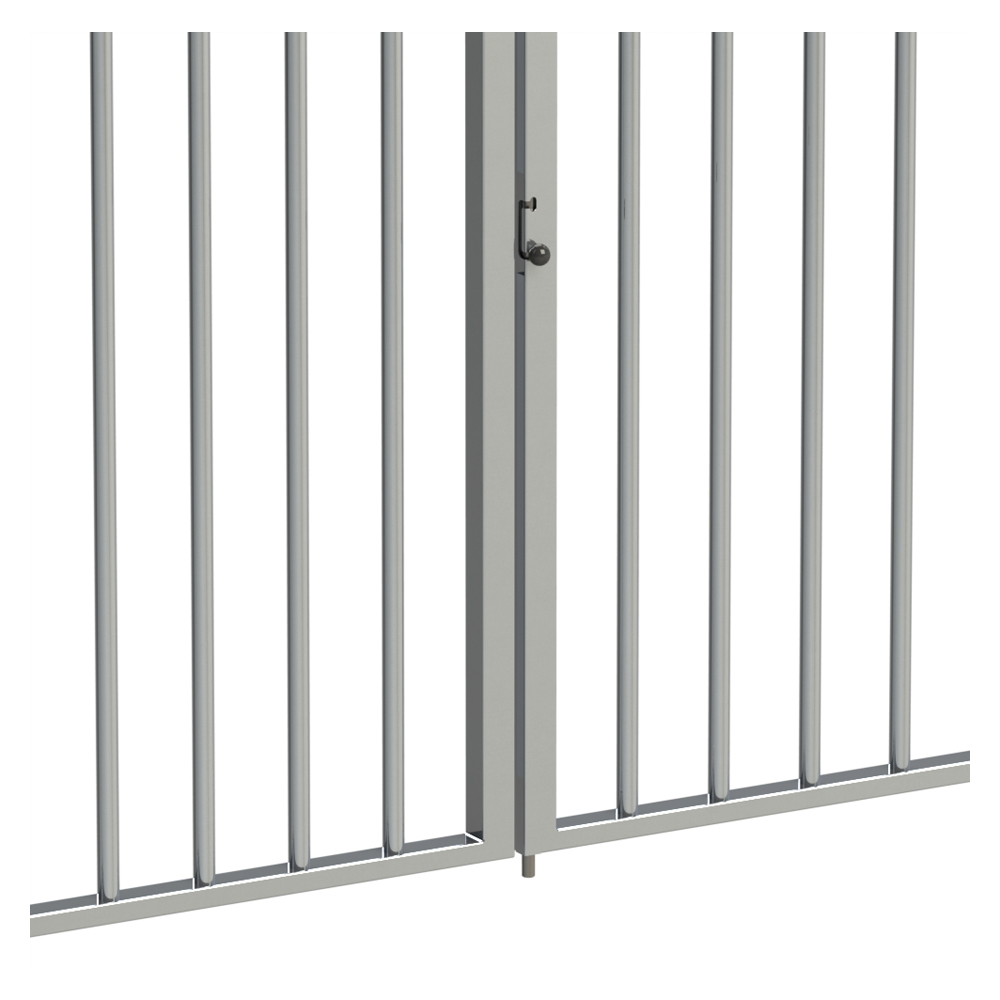

A very neat dropbolt that can be fitted into either single or double gates. The concealed design means it suits a wide range of gate sizes and styles without looking out of place.
- Robust – The dropbolt is inside the gate frame to prevent tampering

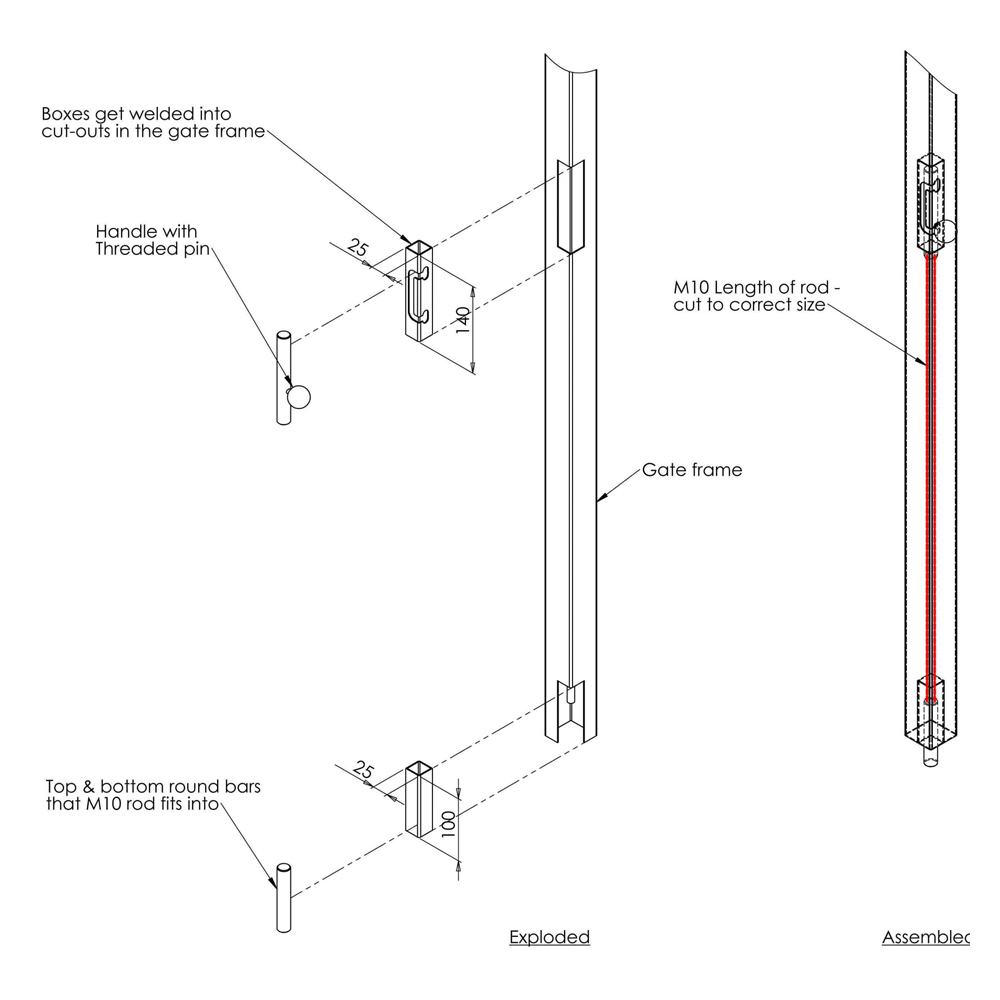

- Easy to fit – Assembled using M10 studding* which can be cut to length for use on a variety of gate sizes
- Adaptable – Fits into any box section bigger than 30mm x 30mm.
- Innovative and secure – On the double gate version, the dropbolt is lowered and rotated and locked in position. Closing the second gate prevents the Dropbolt being unlocked.
Product Code
- CDS – For single gates
- CDD – For double gates
Included in the box
- Lower bolt
- Top bolt
- Top housing
- Lower housing
- Handle
- 2 x grub screws
*M10 studding not included with the product
